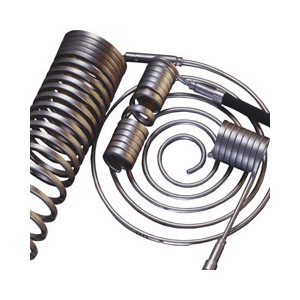

The versatile Watlow cable heater can be formed to a variety of shapes as dictated by its many applications.  Cable heaters are small diameter, high performance units, fully annealed and readily bent to a multitude of configurations.

The heater can be formed into a compact coiled nozzle heater for use on plastic injection molding equipment supplying a full 360 degrees of heat with optional distributed wattage. A straight cable can snake through a sealing bar in packaging equipment. Flat spiral configurations are used in semicon- ductor manufacturing while a star wound cable is used for air and gas heating.

Different applications require different construction methods, including one, two, three or four resistance wires; parallel coil or straight wire; drawn or swaged sheaths; with or without internal thermocouples; leads exiting from one or both ends, and round, rectangular or square cable sheaths. Whatever the application, the Watlow cable heater can be shaped to fit your application needs.


Watlow: Your Heat Solutions Resource Brochure (EN)
Watlow: Vos Solutions de Chauffage Brochure (FR)
Back to Cable Heaters

Product Features

High ductility
  • Allows the heater to be cold-formed into almost any shape.
Low mass
  • allows for quick response to both heating and cooling.
Constructed with no open seams
  • Enables operation in unusual environments, including cryogenic and sub-freezing temperatures, high vacuum, gaseous and liquid immersion heaters
  • Decreases opportunity for corrosion
Constructed of standard 304 stainless steel, optional 316 stainless steel or alloy 600
  • Provides high-temperature corrosion and oxidation resistance along with ideal expansion properties
Heater sheath can be brazed
  • Allows the permanent attachment of mounted fittings to the heater, contact a Watlow representative for further information
Sizes range from 0.040 in. (1.02 mm) to 0.188 in.(4.8 mm) diameter
  • Delivers a high volume of heat into a tiny space
Internal construction options
  • Allows internal thermocouples and no-heat sections (not available in all sizes)

Resources

Applications

  • Plastic injection molding nozzles
  • Semiconductor manufacturing and wafer processing
  • Hot metal forming dies and punches
  • Sealing and cutting bars
  • Medical, analytical and scientific instruments
  • Restaurant and food processing equipment
  • Cast-in heaters
  • Laminating and printing presses
  • Air heating
  • Textile manufacturing
  • Heating in a vacuum environment
