Polyimide Insulated

Series 512

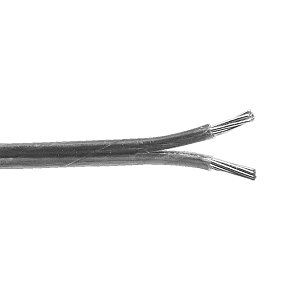

Zesta Thermocouple Wire Series 512
Zesta Thermocouple Wire Series 512
The SERIES 512 is a heavier duty version of SERIES 511 construction, using the same polyimide insulation. Color coding is accomplished using the same colored thread “tracers.” The SERIES 512 has a duplex insulation of polyimide tape. The extra wall of tape yields a construction with increased abrasion resistance.

For higher temperature requirements, choose one of our fiberglass insulated wires.

For improved abrasion resistance, and easier color identification of conductors, specify SERIES 513 when contacting the factory.


Watlow: Your Heat Solutions Resource Brochure (EN)
Watlow: Vos Solutions de Chauffage Brochure (FR)
Back to Thermocouple Extension Wire

Product Features

Performance Capabilities
  • Continuous temperature rating: 600°F (315°C)
  • Polyimide fused tape insulation
  • Colored tracer used to indicate calibration type
  • Available with an optional metallic overbraid for additional abrasion resistance

Specifications

Insulation:
Polyimide fused tape
Continuous use temperature:
600°F (315°C)
Single use temperature:
800°F (430°C)
Resistance properties:
  • Moisture: Excellent
  • Chemical: Excellent
  • Abrasion: Excellent

Applications

  • Aerospace
  • Petrochemical
  • Plastics
