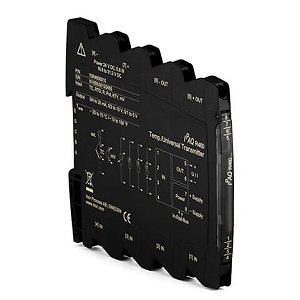

| Type |
Rail-mounted |
| Input |
RTD, Thermocouple, mV, ohm and KTY |
| Input RTD |
Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni500, Ni1000 |
| Input Thermocouple |
Typ B, E, J, K, L, N, R, S, T, U, W5Re_W26Re, W3Re_W25Re; |
| Measuring range RTD |
Pt 100, Pt 200, Pt 500, Pt 1000: -200… +850 °C
Ni 100: -60… +250 °C
Ni 200, Ni 500, Ni 1000: -50… 180 °C
|
| Measuring range Thermocouple |
Type B: +250… +1820 °C
Type C (W5Re_W26Re): 0… +2315 °C
Type D (W3Re_W25Re): 0… +2315 °C
Type E: +270… +1000 °C
Type J: +210… +1200 °C
Type K: +200… +900 °C
Type L: +200… +900 °C
Type N: +270… +1300 °C
Type R: -50… +1768 °C
Type S: -50… +1768 °C
Type T: -270… +400 °C
Type U: +200… +600 °C
|
| Type of Transmitter |
Digital |
| Output |
0…20 mA, 4…20 mA, 0…10 mA, 2…10 mA,
0…5 V, 0…10 V, 1…5 V, 2…10 V |
| Galvanic isolation |
3 kV AC, 50 Hz, 1 min |
| Measuring channels |
1 channel |
| Sensor connection |
2-, 3-, 4-wire |
| Power supply |
24 V DC
Voltage range 9.6…31.2 VDC, approx. 0.8 W |
| Typical accuracy |
Max. ±0.05 K or ±0.05 % of measuring range |
| Configuration |
DIP switch or INOR-Set |
| EMC |
EN 61326-1 |
| Ambient temperature |
Operation: -25…+70 °C (-13…+158 °F)
Transport and storage: -40…+85 °C (-40…+185 °F) |
| Design |
6.2 mm:n (0.244″) bayed case, protection class IP 20, mounting on 35 mm top-hat rail acc. to EN 60715 |
| Weight |
approx. 70 g |
