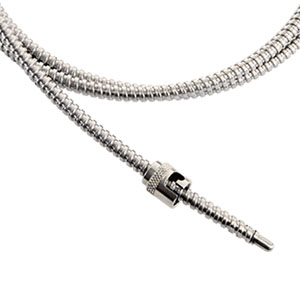

Adjustable Armor Thermocouples

Style 12

Adjustable armor thermocouple fits a large range of hole depths. Bends to any angle, eliminating the requirement to stock numerous styles. Stainless steel hose offers additional lead protection in demanding applications

Back to General Purpose

Customize this product Buy now

Features

Specifications

Ordering information

Resources

Applications

Stainless steel braid or hose protection
J, K, T and E calibrations
Grounded, ungrounded and exposed junctions
Flat and drill point
Epoxy sealed cold ends
Adjustable depths
Flexible extensions
Washers, nozzles and clamp bands
Custom diameters
PFA coated and stainless steel sheaths
Straight, 45° bend or 90° bend
Locking bayonet caps in standard, 12 mm and 15 mm

Product Specifications

Calibration:

Type J, K, T, E

Junction:

Grounded
Ungrounded

Tip Style:

Round tip
Flat tip
Drill point
Exposed

Lead Length and Material:

Fiberglass with SS flex Armor (482°C / 900°F)
Polymide with SS flex Armor (315°C / 600°F)
FEP with SS Armor (204°C / 400°F)
PFA with SS Armor (260°C / 500°F)

Termination:

2.5" split leads
2.5" split leads with #6 spade lugs
2.5" split leads with #6 spade lugs and BX connector
Male plug connector
Female jack connector
Mini male plug connector
Mini female jack connector

Special Options:

Dual element
Double slotted cap 12 mm or 15 mm

Ordering information

Resources

Literature

Thermocouple Adjustable Armor Datasheet

Food processing equipment
De-icing
Plating baths
Industrial processing
Medical equipment
Pipe tracing control
Industrial heat treating
Packaging equipment
Liquid temperature measurement
Refrigerator temperature control
Oven temperature control
