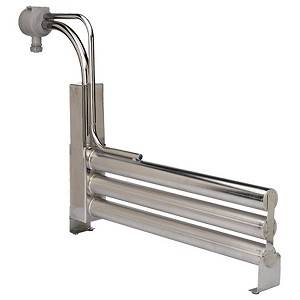

Triple Vertical L-Shaped Heater

3LVMOTS Series

Product Features

  • Heavy wall metal sheaths available in steel, 304 stainless steel, 316 stainless steel and titanium.
  • Watt densities up to 35 watts/square inch (5.4 w/cm²).
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
  • Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
  • Certification: cULus listed (except steel). CE compliant (except 600 volts)

Product Specifications

  • 3000 - 36000 watts
  • 208 to 600 volts
