3 Element O-Shaped PTFE Heater

3HXO Series
Zesta 3 Element O-Shaped PTFE Heater
Zesta 3 Element O-Shaped PTFE Heater
For Acid Solutions.  Excellent chemical resistance to aggressive acids.
Back to PTFE Immersion Heaters

Product Features

  • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
  • Low watt density design 10 watts/square inch (1.5w/cm²).
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
  • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
  • Certification: cULus. CE certified (except 600 volts).

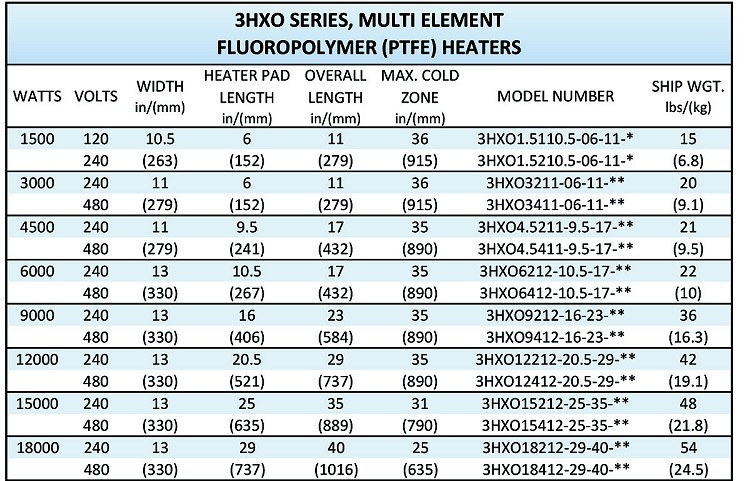

Product Specifications

  • 1500 - 18000 watts
  • 120 to 600 volts (600 volts on 12,000 watts or lower only)

Ordering information
