Home
Products
Heaters
Cartridge/Insertion Heaters
Split-Sheath Cartridge Heaters
T7B Split-Sheath Cartridge Heater
T7B Split-Sheath Cartridge Heater
With Mounting Bracket
share
Advantages of split-sheath cartridge heaters over traditional cartridge heaters
Longer life
Faster and easier heater extraction
Longer heater length with less camber
Larger allowable hole tolerance
Heated ends
Back to Split-Sheath Cartridge Heaters
Customize this product
Buy now
Features
Specifications
Ordering information
Resources
Applications
Product Features
Split-sheath cartridge heaters offer a two-fold benefit:
When heated, split sheath cartridge heaters expand to maximize heat transfer. This allows the heaters to perform more efficiently, reducing energy costs.
When cool, split sheath cartridge heaters contract and allow for easy removal from the bore, and require much less effort to remove than tradition cartridge heaters.Therefore, downtime and maintenance costs are dramatically reduced.

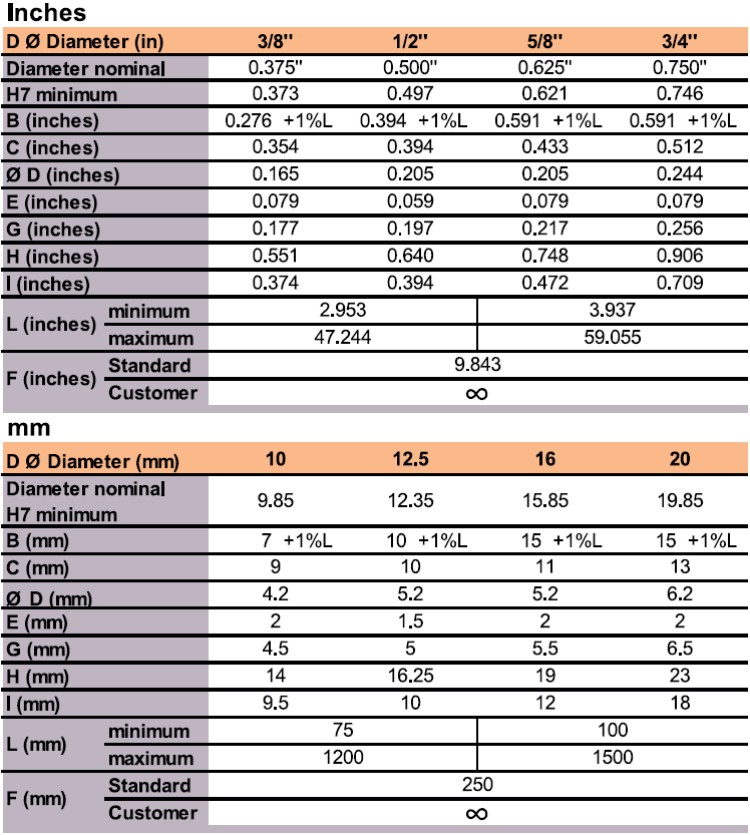

Product Specifications
